Home  >  Hydronics  >  Water Heaters  >  Commercial Gas  > SHE50-100NE 100305437

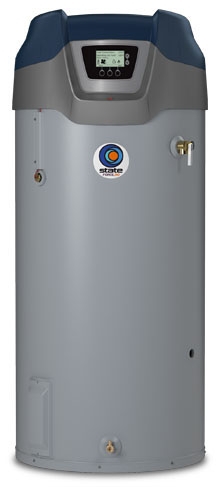

SHE50-100NE 100305437 State Com. NG Direct Vent Htr

Item #: 62294
Manufacturer Item: 100305437
Manufacturer: STATE COMMERCIAL
3/4" x 3/4", NPT x NPT, 100000 BTU/Hr, 50 Gallon, 120 VAC 60 Hz, 5 A, 83 GPH, Lead-Free, Commercial Natural Gas Water Heater
62294

The Force 90+ is a light-duty, power direct vent, fully condensing commercial gas water heater with an internal helical heat exchanger

This helical heat exchanger helps Force 90+ achieve 96% thermal efficiency and deliver outstanding hot water output

Exclusive State designed touch display control system

Built-in diagnostics and operational information

Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle

Positioned in the center of the tank for more even heat distribution

Spiral design reduces lime scale formation on the heat exchanger to maintain high efficiency operation over time

SIDE-MOUNTED HOT and COLD RECIRCULATING TAPS-Allows Force 90 to be installed as part of combination space heating/water heating applications

BLUE DIAMONDĀ® GLASS COATING-Provides superior corrosion resistance compared to industry-standard glass lining

Co regard ANODE ROD-anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods

Energy StarĀ® Rated

Lead-Free

Commercial Gas

Applicable Standard
UL, CSA, AHRI, ASHRAE/IESNA 90.1, ANSI Z.21.10.3
Inclusions/Features
Advanced Electronic Control, Coregard Anode Rod
Tank Capacity
50 Gallon
Tank Dimensions
22 Inch Diameter x 65 Inch Height
Tank Warranty
3 Year
Gas Connection
1/2 Inch
Gas Type
Natural
GPH Recovery
83 GPH at 140 Deg F
Input Supply Rating
100000 BTU/Hour
Relief Valve Details
CSA/ASME T and P Relief Valve
Options
Concentric Vent Kit, Condensate Neutralization Kit
Tank Height Including Draft Hood
66.75 Inch
Inlet/Outlet Connection
3/4 Inch Threaded (Top/Side)
Venting Type
Power Direct
Burner Type
Ultra Low NOx
Energy Saver Conformance
Yes
