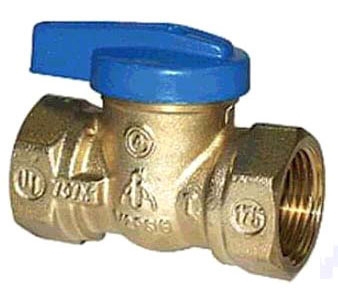

102-104 3/4IN T-3000 BLUE LEVER HANDLE GAS BALL VALVE

Item #: 53057
Manufacturer Item: 102-104
Manufacturer: LEGEND VALVE AND FITTING
3/4" x 3/4", FPT x FPT, 175 PSI, UNS C37700 Chrome Plated Forged Brass, 1/4 Turn Handle, 1-Piece, Gas Ball Valve
53057

Patented one-piece forged brass body eliminates the possibility of seam leaks common to two-piece body designs

Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas application

Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cock

The 175 psi pressure rating permits high-pressure air tests, without the grease-seal blowout common to plug-type gas cocks

Black Pipe & Fittings

End Connection
Female Threaded x Female Threaded
Pressure Rating
175 PSI
Application
Residential and Commercial Gas Installation
Type
1-Piece
Applicable Standard
ANSI/ASME B1.20/B16.44, NSI Z21.15, UL
Actuation Type
1/4 Turn Handle
Ball Material
ASTM B124 UNS C37700 Chrome Plated Forged Brass
Body Material
ASTM B124 UNS C37700 Forged Brass
Handle Material
Commercial Grade, Die-Cast Coated Aluminum
Inclusions/Features
Commercial Grade Synthetic Fiber Thrust Washer, AS
End to End Distance
2.6 Inch
Seat Material
Type 7PB496 ASTM D2000 Nitrile Rubber
Stem Material
ASTM B124 UNS C37700 Forged Brass
