Home  >  Air Distribution  >  Duct Board & Fittings  >  Duct Board  > 90005705 1 1/2X48X120 MICRO

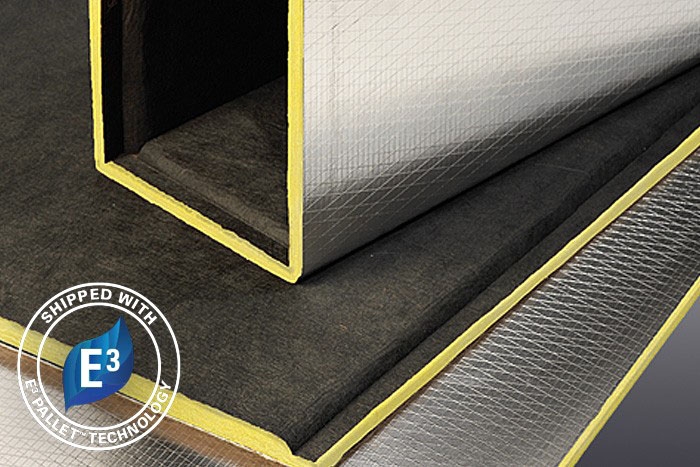

90005705 1 1/2X48X120 MICRO AIRE DUCTBOARD

Item #: 40766
Manufacturer: MANVILLE SALES CORP
48" x 120', 1-1/2" Thick, Fiberglass with Thermosetting Resin, Mat Faced, HVAC Duct Board
40766

Durable Airstream Surface

Micro-Aire exhibits superior toughness compared to standard fiber glass duct board

It provides increased resistance to damage that can occur from in-shop handling, fabrication, jobsite shipping and installation

Low Resistance to Air Flow

Micro-Aire duct board has a smooth interior surface that offers minimal resistance to air flow

Air friction data is available from your Johns Manville representative by requesting AHS-165

Quiet Operation

Fabricated Micro-Aire duct systems noticeably decrease the audibility of crosstalk, equipment noise and eliminate the sounds associated with the expansion and contraction of sheet metal duct systems

Will Not Support Microbial Growth

The airstream surface of Micro-Aire duct board is treated with an antimicrobial agent specifically registered with the EPA for HVAC applications to resist potential growth of fungus or bacteria on the airstream surface

Duct Board

Applicable Standard
ASTM E84, UL 723/181 Class 1, NFPA 90A and 90B, CA
Application
Air Conditioner, Heating and Ventilating System
Insulation Thickness
1-1/2 Inch
Material
Fiberglass with Thermosetting Resin
Maximum Temperature Rating
250 Deg F
Roll/Sheet Dimensions
48 Inch Width x 120 Foot Length
Type
Duct Board, Mat Faced
Inclusions/Features
Reinforced Coating System, E3 Pallet Technology
Color
Black
