Home  >  HVAC Equipment  >  Specialty HVAC  >  PTAC  > PDH12R3SG 11800 BTU 3.5KW

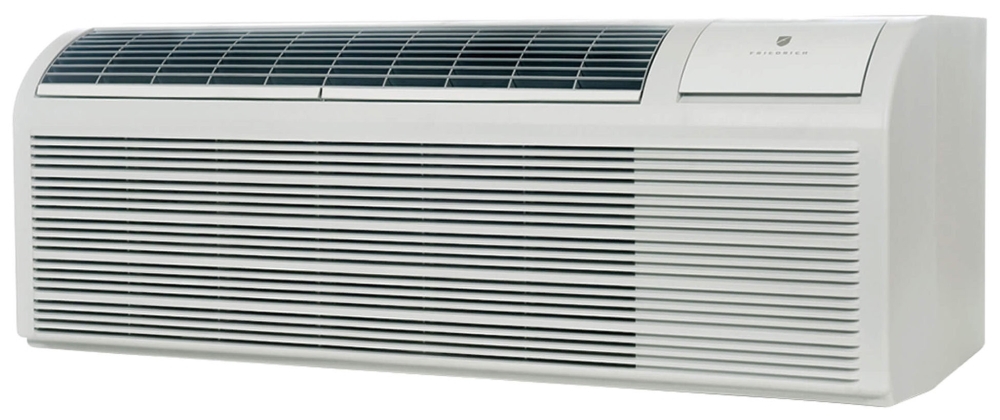

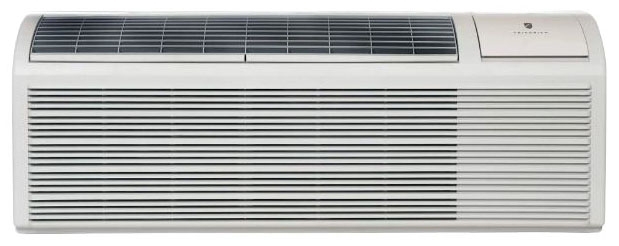

PDH12R3SG 11800 BTU 3.5KW 265V PTAC HEAT PUMP - R410A

Item #: 86970
Manufacturer Item: PDH12R3SG
Manufacturer: FRIEDRICH PTAC
11800 BTU Cooling, 3.5 kW Heater, 265 VAC 60 Hz 1-Phase, 400 CFM, 11.6 EER, R410A Refrigerant, Energy Efficiency, Packaged Terminal Heat Pump

Our Most Efficient Standard PTAC with Exceptional Performance and Leading Warranty for the Lowest Cost of Operation

Durable Construction

Energy Efficiency

Comfort and Convenience

Sound Reduction Technology

Tangential Blower Wheel for Fast, Powerful and Even Air Distribution

Two Permanently Lubricated Fan Motor for Quiet Operation

2 Heating and Cooling Fan Speeds and Auto Mode

Adjustable High/Low Temperature Range Limits for Reduced Energy Usage

Internal Diagnostic Program

Constant Fan Mode Provides Continuous Fan Operation in Cooling and Heating Modes

Fits Standard PTAC Sleeve without the Added Cost of a Baffle Kit

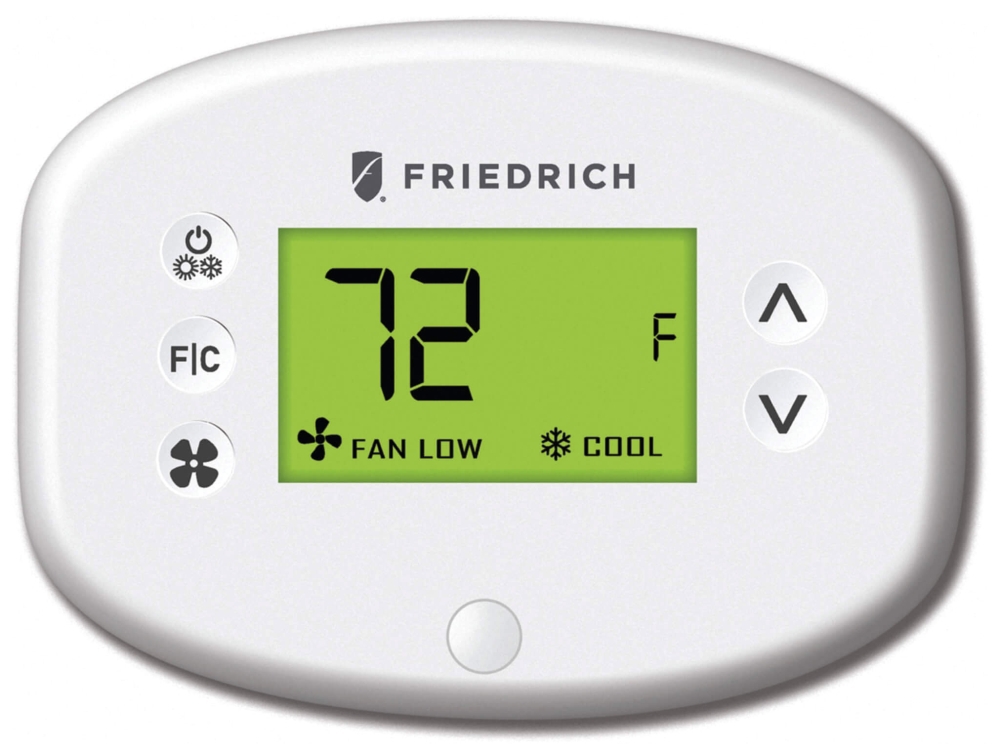

Wireless or Wired Remote Thermostat Operation

Central Desk Control Ready

Compatible with Energy Management Systems

Reversible Indoor Air Louver

Condensate Removal System Uses Slinger Ring Technology to Cool the Coil and Increase Efficiency

Antimicrobial Air Filter

Modular Design Ensures Easy Access to Key Component

Diamond Blue Advanced Corrosion Protection

PTAC

Cooling Capacity
11800 BTU
Current Rating
4.2 Amp, 19 Amp Locked Rotor, 3.9 Amp Rated Load
Frequency Rating
60 Hertz
Number of Phases
1
Power Rating
1015 Watt (Cooling), 910 Watt (Heating)
Voltage Rating
265 Volt AC
Weight
119 Pound
Approval
UL (Canada and US)
Temperature Control Type
Remote Thermostat
Type
Energy Efficiency
Cooling Coefficient
3.4
Enclosure Finish
Galvanized Zinc Coated
Enclosure Material
18 Gauge Steel
