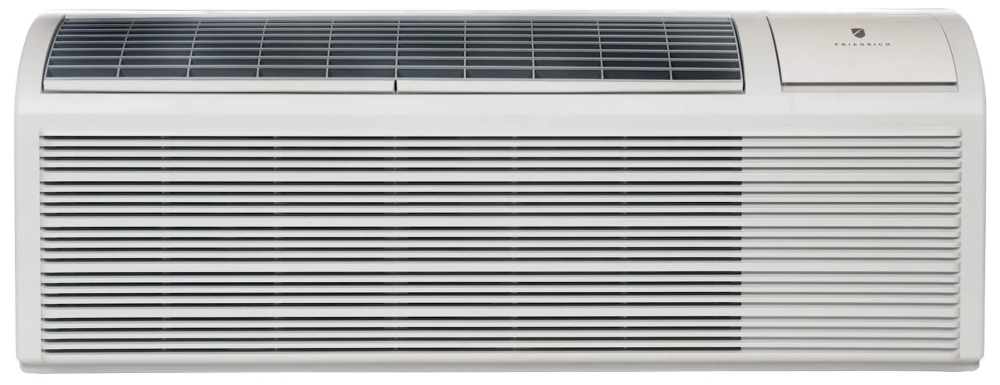

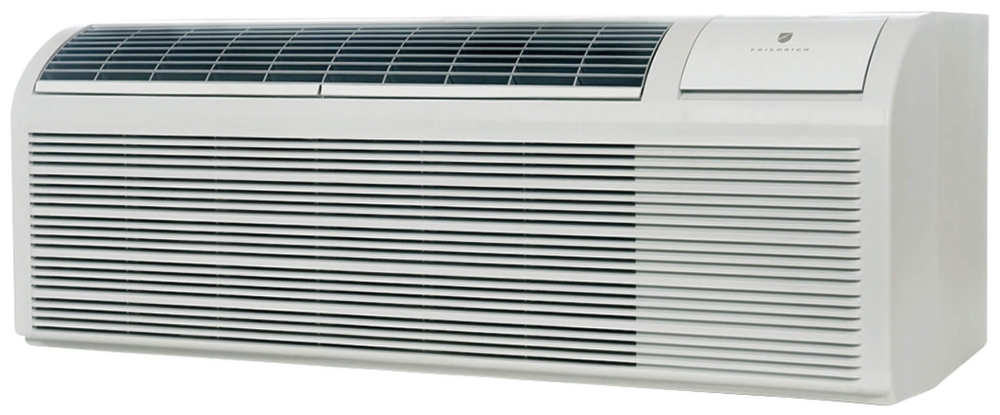

PDE07K3SG 7200 BTU 3.5KW 208/230V PTAC - R410A

Item #: 86958
Manufacturer Item: PDE07K3SG
Manufacturer: FRIEDRICH PTAC
7200/7000 BTU Cooling, 3.5 kW Heater, 230/208 VAC 60 Hz 1-Phase, 345/315 CFM, 13 EER, R410A Refrigerant, Energy Efficiency, Packaged Terminal Air Conditioner

Our Most Efficient Standard PTAC with Exceptional Performance and Leading Warranty for the Lowest Cost of Operation

Durable Construction

Energy Efficiency

Comfort and Convenience

Sound Reduction Technology

Tangential Blower Wheel for Fast, Powerful and Even Air Distribution

Two Permanently Lubricated Fan Motor for Quiet Operation

2 Heating and Cooling Fan Speeds and Auto Mode

Adjustable High/Low Temperature Range Limits for Reduced Energy Usage

Internal Diagnostic Program

Constant Fan Mode Provides Continuous Fan Operation in Cooling and Heating Modes

Fits Standard PTAC Sleeve without the Added Cost of a Baffle Kit

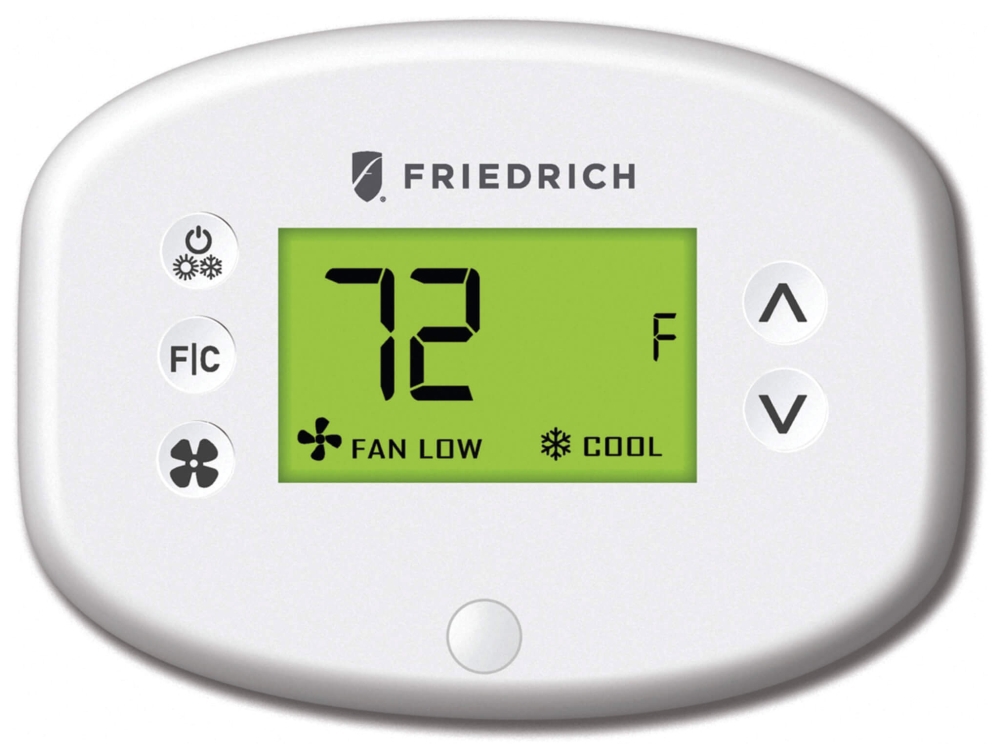

Wireless or Wired Remote Thermostat Operation

Central Desk Control Ready

Compatible with Energy Management Systems

Reversible Indoor Air Louver

Condensate Removal System Uses Slinger Ring Technology to Cool the Coil and Increase Efficiency

Antimicrobial Air Filter

Modular Design Ensures Easy Access to Key Component

Diamond Blue Advanced Corrosion Protection

PTAC

Cooling Capacity
7200/7000 BTU
Current Rating
2.7/2.9 Amp, 13 Amp Locked Rotor, 2.5 Amp Rated Lo
Frequency Rating
60 Hertz
Number of Phases
1
Power Rating
550/535 Watt
Voltage Rating
230/208 Volt AC
Weight
106 Pound
Approval
UL (Canada and US)
Temperature Control Type
Remote Thermostat
Type
Energy Efficiency
Enclosure Finish
Galvanized Zinc Coated
Enclosure Material
18 Gauge Steel
