Home  >  Hydronics  >  Water Heaters  >  Commercial Gas  > SUF100-250NEA 100234924

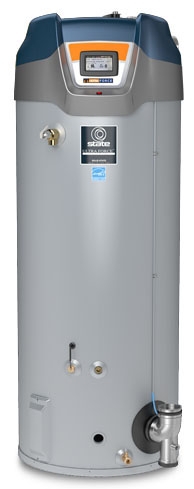

SUF100-250NEA 100234924 ASME NG Direct Vent Wtr Heater

Item #: 62686
Manufacturer Item: 100234924
Manufacturer: STATE COMMERCIAL
250000 BTU/Hr, 100 Gallon, 120 VAC 60 Hz, 5 A, 208 GPH, Lead-Free, High Efficiency, Commercial Natural Gas Water Heater
62686

Modulating Ultra Force High Efficiency Power Vent is an industry leader in high efficiency commercial water heating

The current modulating models adjust firing rate to the specific demand further increasing efficiency and money savings

Exclusive State designed color touch display control system

Provides detailed water heater status information

Built-in diagnostics

Intelligent Demand Response (IDR) feature senses large water draws and automatically adjusts the differential set point

This feature increases the hot water available when it is needed the most

SUBMERGED COMBUSTION CHAMBER, with HELICAL HEAT EXCHANGER COIL-Positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

Spiral heat exchanger keeps hot burner gases swirling, uses centrifugal force to maximize efficiency of heat transfer to water in tank

Spiral heat exchanger reduces lime scale from forming on water-side surfaces, which maintains energy efficiency over time

POWERED ANODES Standard ON ALL MODELS-Provides long-lasting tank protection in varying water conditions

Powered anodes are non-sacrificial

Automatically adjusts output needed to properly protect the tank

MECHANICAL VENTING VERSATILITY-Conventional power venting or direct venting

Vents vertically or through a sidewall

Front located exhaust and condensate connections allow for easy install and access

Energy StarĀ® Rated

Lead-Free

Commercial Gas

Applicable Standard
UL CSA, AHRI, ASHRAE/IESNA 90.1, ANSI Z.21.10.3, N
Inclusions/Features
Intelligent Control System with Touch Screen Displ
Tank Capacity
100 Gallon
Tank Dimensions
27-3/4 Inch Diameter x 70 Inch Height
Tank Warranty
3 Year
Gas Connection
3/4 Inch Threaded
Gas Type
Natural
GPH Recovery
208 GPH at 140 Deg F
Input Supply Rating
250000 BTU/Hour
Relief Valve Details
CSA/ASME T and P Relief Valve
Ignition Type
Direct Spark
Options
Concentric Vent Kit, Condensate Neutralization Kit
Type
High Efficiency
Tank Height Including Draft Hood
76-1/2 Inch
Venting Type
Power
Insulation Details
Foam
Tank Material
Glass Lined Steel
Burner Type
Down Fired Pre-Mix
Energy Saver Conformance
Yes
